COLOUR OPTIONS

STANDARD COLOUR RANGE

SOLARSMART COLOUR RANGE

FREQUENTLY ASKED QUESTIONS

As the temperature changes, polycarbonate sheets will expand and contract. When fixing the polycarbonate sheeting to a structure it is important that you allow for this ‘movement’ by:
- Creating an oversized hole for the screw. By using Suntuf CLEARFIX or ONESHOT screws which include a cutter on every screw it takes no extra time.
- Not over tightening the screws
As a rule of thumb you will need 8 screws per lineal metre of sheeting.
Silicones are generally not recommended for Polycarbonate sheeting. Talk to us about flashing options.
Always ensure that sheeting is installed the correct way up – this is the side with the protective UV layer on the sheet – it will be clearly marked on the sheet. This stops the sheet from breaking down prematurely due to the effects of harmful UV.
Sheets can be cut to length free of charge before dispatch , otherwise a fine tooth circular saw can be used.

SUNTUF FIXINGS

Both Oneshot and Clearfix screws have an inbuilt cutter to save you from pre-drilling. They also include a polycarbonate specific dome washer to ensure a watertight fixing.

SUNTUF PROFILE SPECIFICATIONS

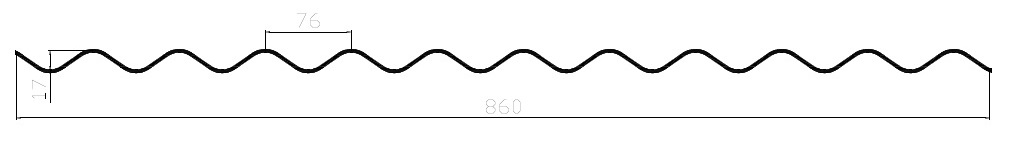

	Corrugated	Greca	Trimdek

			Not available in SolarSmart or SolarSmart Selective in the Domestic Range
Sheet Width	860 mm	810 mm	822 mm
Sheet Coverage	760 mm	760 mm	760 mm
Maximum End Spans	800 mm	900 mm	900 mm
Maximum Mid Spans	1000 mm	1200 mm	1200 mm
Fixing Spacing on END SPANS	Every other rib	Every other rib	Every rib
Fixing Spacing on MID SPANS	Every other rib on sides of sheet every 3rd in middle	Every other rib on sides of sheet every 3rd in middle	Every rib
Minimum Curve Radius	4000 mm	4000 mm	11 000 mm
Available Sheet Sizes:	1.8m, 2.4m, 3.0m, 3.6m, 4.2m, 4.8m, 5.4m, 6.0m, 7.2m
Recommended Roof Slope:	5 Degrees

SUNTUF RANGE SPECIFICATIONS

	Suntuf Standard						Suntuf SolarSmart			Suntuf SolarSmart Selective
Colours	Clear	White Diffused	Cedar Bronze	Solar Grey	Opal	Smooth Cream	Diffused Grey	Diffused Ice	Transparent Grey	Sand Dune	Metallic Jasper
Light Transmission (%)	90	85	25	20	45	44	20	25	20	15	15
Heat Transmission (%)	86	80	48	43	40	33	18	21	30	15	16
Shading Coefficient Ratio	1.0	0.92	0.56	0.52	0.54	0.38	0.35	0.33	0.45	0.35	0.3
Solar Heat Gain Coefficient (SHGC)	0.89	0.8	0.49	0.46	0.48	0.331	0.3	0.287	0.392	0.305	0.261
U Value Watts/m2K	5.8	5.8	5.8	5.8	5.8	5.8	5.8	5.8	5.8	5.8	5.8
	10 years against weather breakage – including hail up to 25mm, 10 years against loss of light transmission
